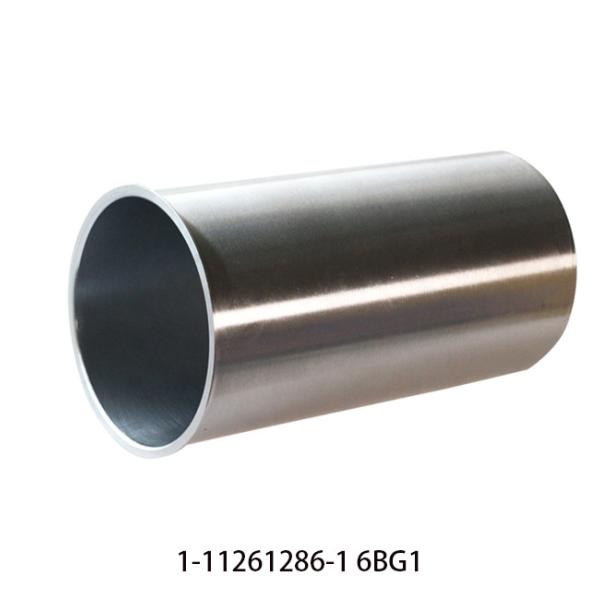

Dry Cylinder Liner Fit Isuzu 6BG1 6BF1 1-11261286-1
We manufacture the cylinder liner sleeve from 55mm to 170mm, both Wet cylinder sleeve and Dry cylinder
Sleeves, With exact dimension, accuracy,standards and optimum tolerance.
We can OEM Your Brand, Or produce according to drawings and samples.
QUICK DETAILS
| MODEL | 6BG1 6BF1 |
| OEM | 1-11261286-1 1112612861 |
| name | dry steel chrome cylinder liner |
| Bore size | 105*107*203*113*1.32 |
| Out diameter | Chrome cylinder liner |
| Total length | 204mm |
| Minium order quantity | 600pcs |
| Shipping port | Hefei or Shanghai |
| Lead time | 45 DAYS |
| MODEL | ENGINE | OEM | SIZE | NOTES |
| AJT-LSU01 | ISUZU | C190 | 8-97176659-0 | 86*88*163*94*0.82 | steel chrome |
| AJT-LSU02 | ISUZU | C240 | 8-97176896-0 | 86*88*178*94*0.8 | steel chrome |
| AJT-LSU03 | ISUZU | C223 | 8-97176675-0 | 88*90*163*95*0.8 | steel chrome |
| AJT-LSU04 | ISUZU | 4JC1 | 8-97915325-0 | 88*90*156*95*0.82 | steel chrome |
| AJT-LSU05 | ISUZU | 4JA1 | 8-97176691-0 | 93*95*156*101*0.8 | steel chrome |
| AJT-LSU06 | ISUZU | 4JB1 | 8-97176683-0 | 93*95*181*101*0.8 | |
| AJT-LSU07 | ISUZU | 4JG2 4JH1 | 8-97176699-0 | 95.4*97*178*102.42*1.15 | |
| AJT-LSU08 | ISUZU | 4BA1 | 8-97176904-0 | 98*101*156*108*1.32 | |
| AJT-LSU09 | ISUZU | 4BC2 4BC1 | 8-97176707-1 | 102*105*187*112*1.32 | |
| AJT-LSU10 | ISUZU | 4BE1 | 8-97176715-0 | 105*107*187*113*1.32 | |
| AJT-LSU11 | ISUZU | 4BD1 6BD1 | 1-11261240-0 | 102*105*204*112*1.32 | |
| AJT-LSU12 | ISUZU | 6BG1 6BF1 | 1-11261286-1 | 105*107*203*113*1.32 | |
| AJT-LSU13 | ISUZU | 4HE1 | 8-97176723-0 | 110*115*210*122*5.7 | |
| AJT-LSU14 | ISUZU | 4HF1 | 8-97176727-0 | 112*115*180*120.7*6 | |
| AJT-LSU15 | ISUZU | 4HF1 | 8-97144174-0 | 112*115*180*121.7*6 | |
| AJT-LSU16 | ISUZU | 4HG1 | 8-97176729-0 | 115*118*180*123.7*6 | |
ABOUT US
Cylinder Liner sleeve is our key products. We are able to produce both Wet cylinder liner and Dry cylinder
liner. The material include cast iron and steel. The bore size from 55mm to 170mm. The applications inclu
-de: compressors, generators, cars, trucks, heavy duty machines, and marine engines.
